MOD Dwarf - Torcuato Mariano

Compact and powerful all-in-one standalone audio processor to express your creativity at home, in the studio, or at a live performance

Torcuato Mariano Bundle - Includes licenses for the following Torcuato digital pedals:

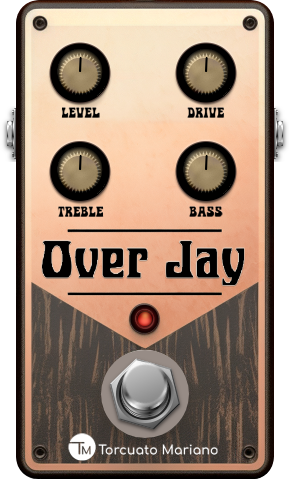

Over Jay

"Over Jay" plugin, developed in collaboration with guitar virtuoso Torcuato Mariano, is a faithful recreation of the revered "Jan Ray" pedal by Vemuram*.

This meticulously modeled plugin captures the Fender Blackface-style overdrive with exceptionally high headroom.

With an unwavering commitment to detail, 'Over Jay' offers you the opportunity to experience the legendary Jan Ray* Overdrive tone that has resonated through the decades, with artists like Brad Whitford, Ariel Posen, Mateus Asato, Tim Pierce, Yvette Young, and many more.

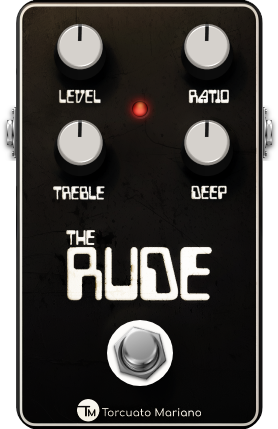

The Rude

"The Rude" plugin, developed in collaboration with guitar virtuoso Torcuato Mariano, is a faithful recreation of the revered "Dude" pedal by J. Rockett*.
This meticulously modeled plugin captures the warm and harmonically rich overdrive tones of the original, while incorporating Torcuato Mariano's musical expertise.
With precise attention to detail, "The Rude" allows musicians and producers to experience the legendary sound that has defined generations.

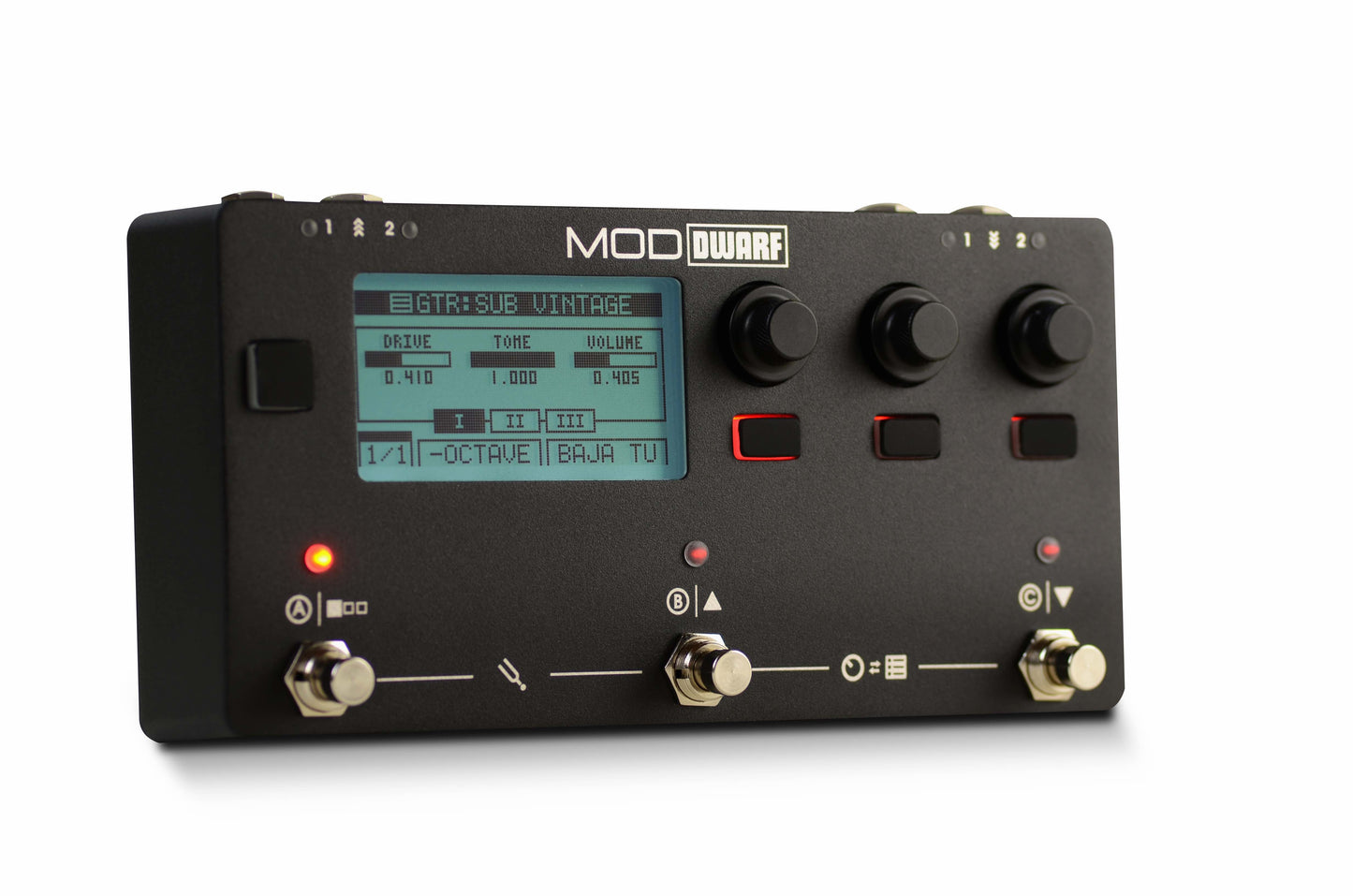

The MOD Dwarf is a compact audio arsenal housing countless audio processing setups you can take with you anywhere. It is durable and streamlined to endure road use.

Instant Tone. Infinite Possibilities.
A compact and powerful standalone guitar effects ecosystem to express your creativity at home, in the studio and on stage.

Built to fit into your rig

Craft tones in the studio and easily bring them on stage. An infinite combination of pedals, processing options and tonal possibilities, accessible anywhere.

An elegantly simple interface

Build pedalboards, tweak effects, and capture snapshots to instantly switch between tones.

Powerful processing

Stereo inputs and outputs and an onboard 1.3 GHz Quad Core ARM processor give you an entire studio worth of creative possibilities in a single pedal.

Specifications:

• Quad Core ARM A35 CPU at 1.3GHz, 1GB RAM, 8GB storage
• 3 endless knobs, 3 footswitches (with LEDs), 3 pushbuttons and a menu button
• 2.9″ LCD display
• Dimensions: 105*202*54mm (L*W*H)
• Weight: 800 grams

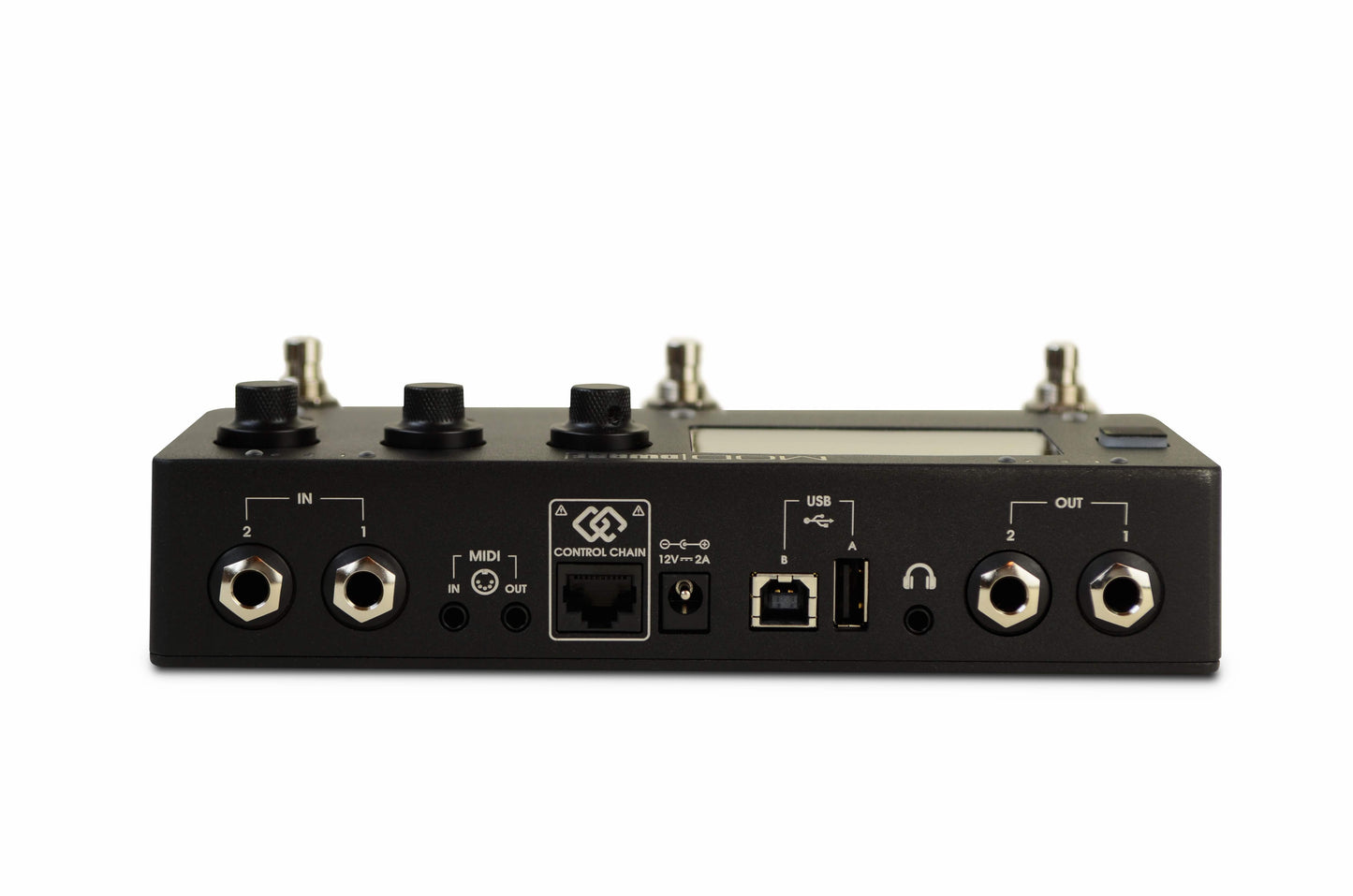

I/Os:

• Dual 6.35mm TRS independent audio inputs, with gain configurable from -12dB to +35dB, 1M Ohm input impedance, unbalanced
• Dual 6.35mm TRS independent audio outputs, with gain configurable from 0dB to -127dB, balanced or unbalanced
• 3.5mm TRS Headphone output, 2x105mW @ 16 ohms, with gain configurable from -33dB to +12dB
• 3.5mm TRS MIDI type-A input and output
• USB Type-B Device port for connecting to a computer
• USB Type-A Host port for MIDI controllers, Bluetooth and Flashdrives
• Control Chain port for MOD peripherals
• Power input on a 5.5*2.1*10mm barrel connector

Included Accessories:

• Protective case
• Dimensions: 240*250*72mm (L*W*H)
• Weight: 280 grams
• Velcro strips for pedalboard attachment
• Rubber strips for floor usage
• USB Cable
• PSU 12V/2A
